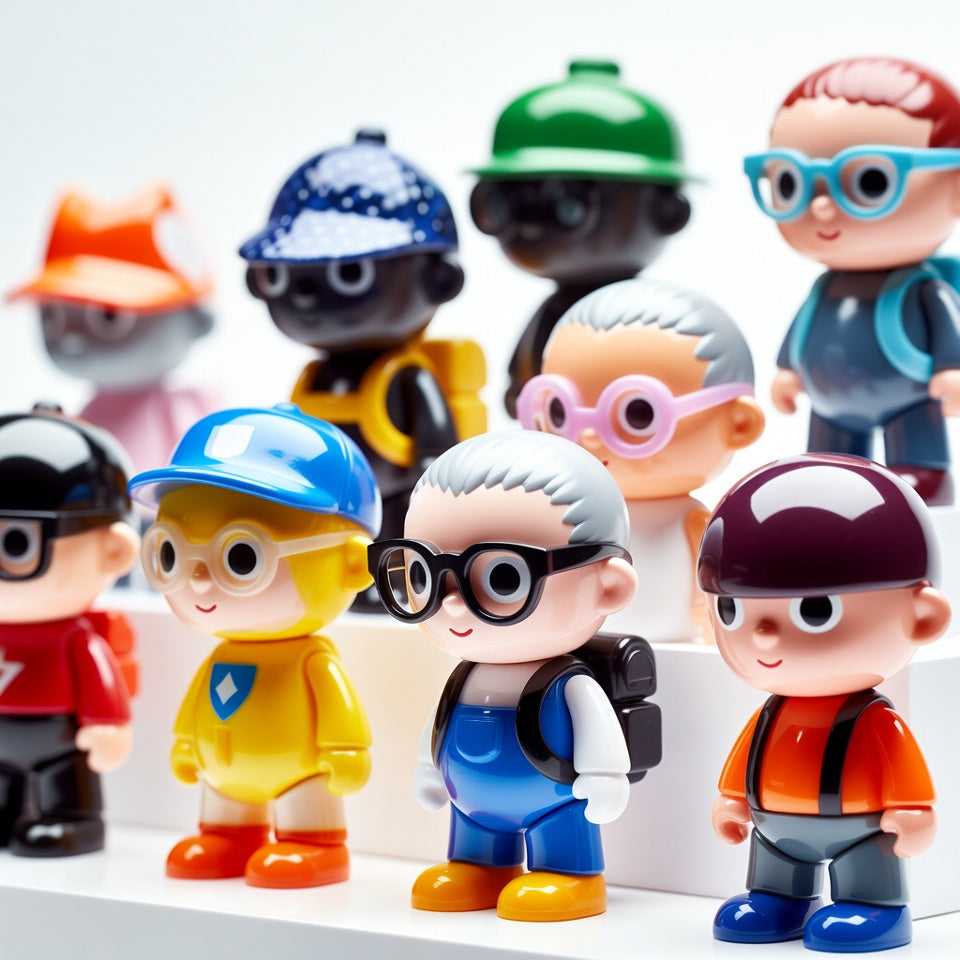

From 2D Sketch to 3D Art Toy Blind Box: The Complete Design Workflow

The global market for designer art toys and blind boxes has exploded. Today, independent illustrators and global brands alike are looking to transform their 2D digital character sketches into tangible, highly collectible 3D figures.
However, jumping from a flat drawing on an iPad to a physical product on a retail shelf is not magic—it is a rigorous, highly technical engineering process. Without a clear understanding of Design for Manufacturability (DFM), many creators face unbalanced figures, incorrect colors, or sky-high tooling costs.
At Silicare, we specialize in bridging the gap between imagination and manufacturing. Here is the complete, transparent workflow of how a 2D sketch becomes a production-ready 3D art toy.
Step 1: The 2D Character Turnaround
A single, beautiful illustration is great for social media, but it isn't enough for a factory. The first step in the manufacturing workflow is creating a detailed "Character Turnaround."
This blueprint must include:
• Multi-Angle Views: Front, side, back, and top views of the character.
• Pantone Color Callouts: Exact color codes for every element to avoid color discrepancies during production.
• Material Specs: Deciding which parts will be matte, glossy, transparent, or textured.
Step 2: 3D Sculpting & Engineering (DFM)
This is where the real magic happens. Using advanced software like ZBrush or Rhino, 3D artists translate the flat 2D turnaround into a 3D digital model.
A professional sourcing and design partner like Silicare doesn't just make it look good—we engineer it for mass production. During this phase, we consider:
• Part Splitting: Art toys are rarely molded in one piece. We digitally slice the character into separate parts (head, arms, accessories) to ensure they can be easily ejected from a steel mold.
• Center of Gravity: Ensuring the figure can stand on its own without toppling over.
• Joints & Articulation: Designing the exact pegs and holes so the parts fit seamlessly together later.
Step 3: Rapid Prototyping (The White Sample)
Before committing to expensive steel tooling, a physical prototype must be made. We use high-resolution 3D resin printers to create a "White Sample."
This unpainted, physical model is shipped to the creator. It allows you to hold your character for the first time, test its proportions, verify the fit of the joints, and make any final structural adjustments before mass production begins.
Step 4: The Hand-Painted Master Sample
Once the 3D structure is approved, our master painters meticulously hand-paint a prototype according to your Pantone callouts.
This "Color Sample" becomes the golden standard. During mass production, the factory workers on the assembly line will use this exact figure as their visual reference for pad printing, spray painting, and hand-detailing.
Step 5: Tooling and Mass Production
With the master sample approved, the project moves to the factory floor.
• Mold Making: High-grade steel or copper molds are CNC-machined based on the 3D files. This process takes 20 to 30 days.
• Injection: Depending on the design, materials like PVC, Vinyl, ABS, or premium Silicone are injected into the molds.
• Assembly & QC: The individual parts are painted, assembled, and rigorously inspected by a Quality Control (QC) team to ensure no paint bleeds or loose joints occur.
Step 6: The "Blind Box" Packaging Experience
For blind boxes, the product isn't just the toy; it's the unboxing experience. The final step involves designing and printing the foil bags, collector cards (including the rare "secret" chase figures), and the display display boxes. We even add precise weight balancers inside the boxes so eager collectors cannot guess which figure is inside by simply weighing them!
Bring Your IP to Life with Silicare
Turning a 2D sketch into a 3D reality requires a partner who understands both the art of design and the science of manufacturing. A single mistake in 3D modeling can ruin a mass-production run.
At Silicare, we provide an end-to-end, radically transparent workflow. From the first 3D CAD model to final QC and global shipping, we protect your IP and ensure your art toys are manufactured to perfection.
Ready to launch your own designer toy or blind box series? [Contact our team today] to discuss your 3D design and manufacturing needs.
